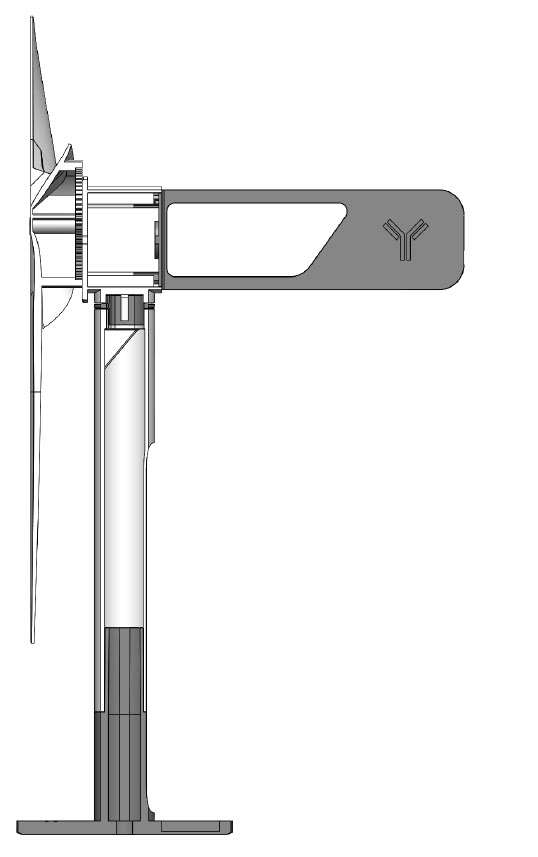

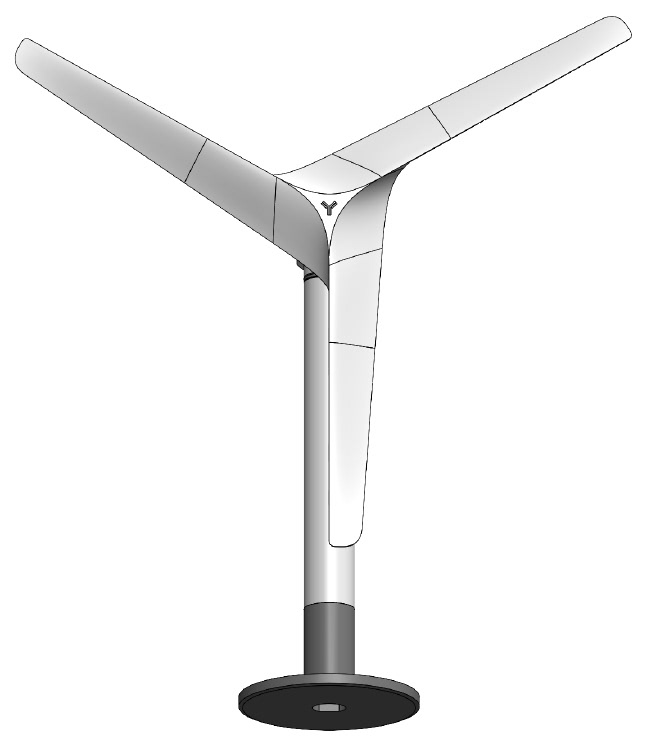

A personal project to design a home wind turbine, creating a working scale model prototype.
![](https://cdn.myportfolio.com/384448be-3d82-4709-ab28-dd7e1fff64db/6865e3bf-1387-4fe9-a9ee-535aa14a1933_rw_1200.jpg?h=4bf257eb0c110593c77d28186454c517)
![](https://cdn.myportfolio.com/384448be-3d82-4709-ab28-dd7e1fff64db/b0f154be-2238-46ef-a2fd-92f12f1dbde7_rw_600.jpg?h=8711f3c287a6d6e9aabe00083848f101)
![](https://cdn.myportfolio.com/384448be-3d82-4709-ab28-dd7e1fff64db/ef2043ec-a010-4a1b-a2df-8a01725c271e_rw_3840.jpg?h=66daa733998fc3694313ca5d259be88b)

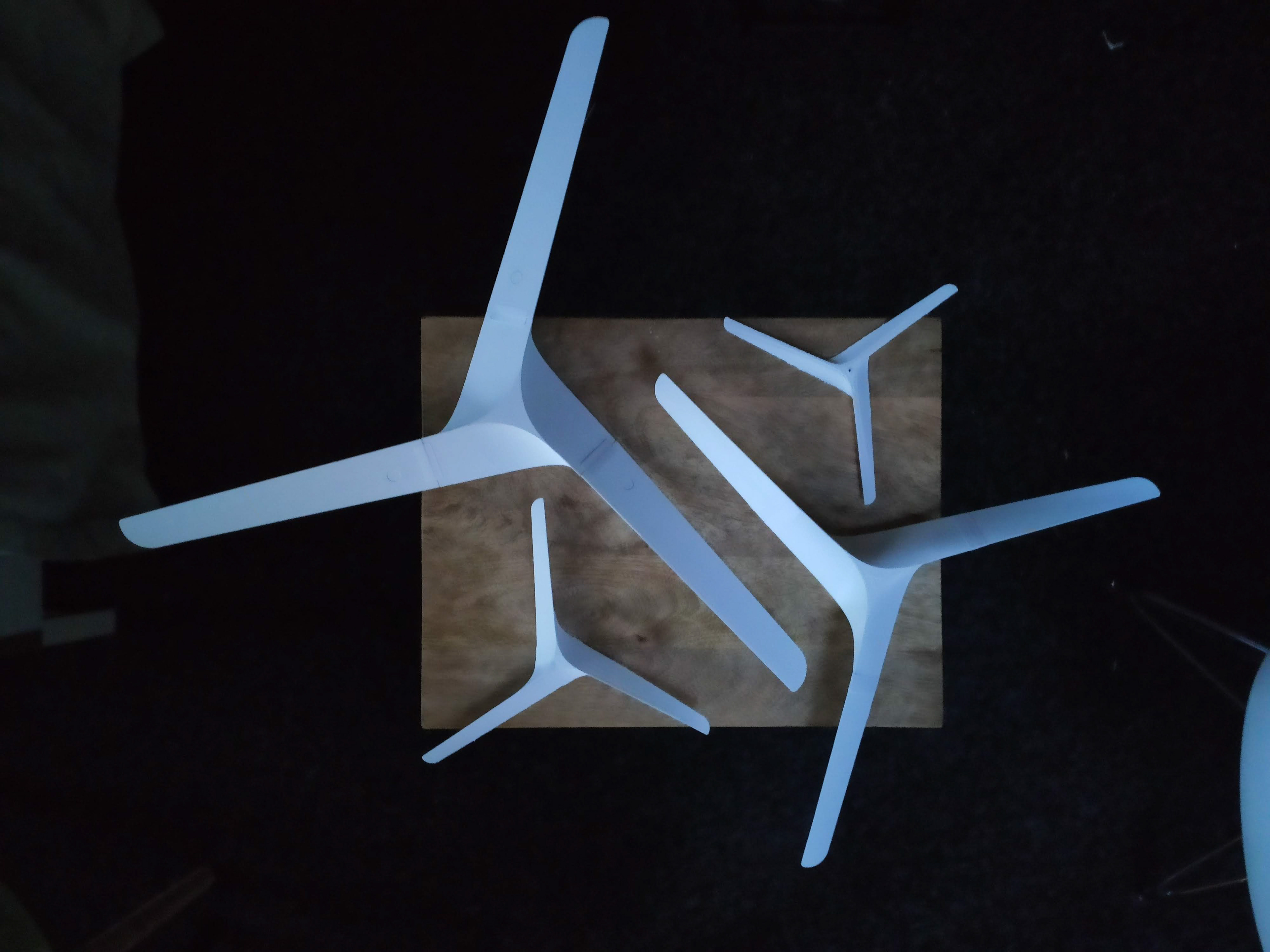

During the project I printed and tested a series of different turbine blades, using various motors, gear ratios etc, together with a breadboard and multimeter to test the different configurations.
![](https://cdn.myportfolio.com/384448be-3d82-4709-ab28-dd7e1fff64db/43def5ac-c55a-40b9-97b3-54469886c5bd_rw_1920.jpg?h=23092b63ee1e254cfe1b064fb3fe885f)

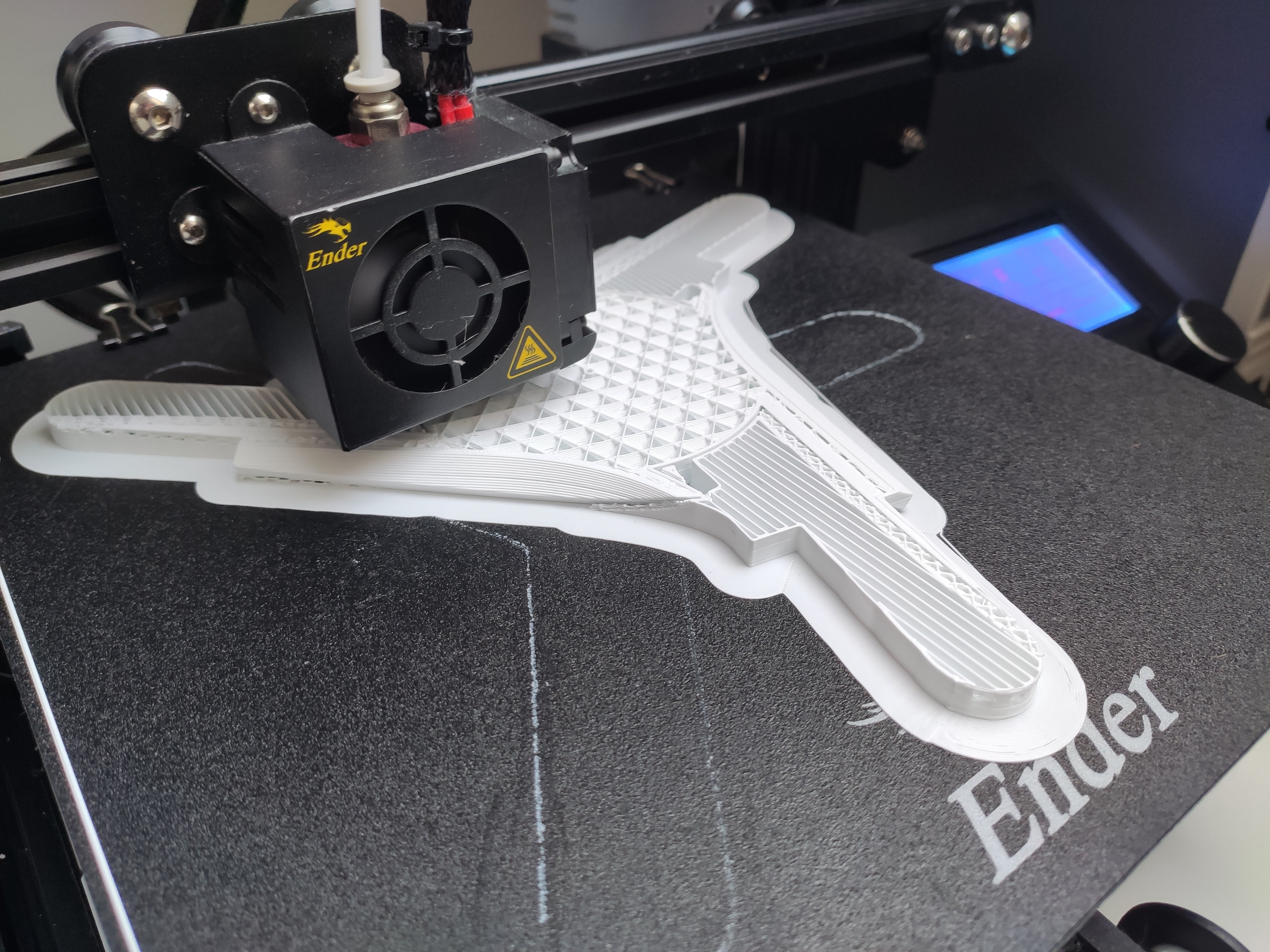

The blades were printed in mutliple parts and then connected to accomoadate the smaller print bed.
